- O-检测 3/2/2O-检测 5/4/3照相机 蔡司 INVENTA D1蔡司 INVENTA D1测量体积 300 x 200 x 200 毫米3500 x 400 x 300 毫米3视场 8.4 x 7.0 毫米28.4 x 7.0 毫米2长度测量误差 MPE （EU）2D 格式1.9 微米 + 升/150 微米1.9 微米 + 升/150 微米3D 格式2.4 微米 + 升/150 微米2.

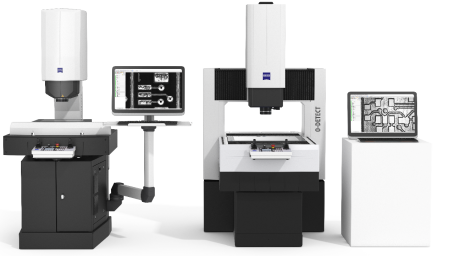

O-检测 3/2/2
O-检测 5/4/3
照相机
蔡司 INVENTA D1
蔡司 INVENTA D1
测量体积
300 x 200 x 200 毫米3
500 x 400 x 300 毫米3
视场
8.4 x 7.0 毫米2
8.4 x 7.0 毫米2
长度测量误差 MPE （EU）
2D 格式
1.9 微米 + 升/150 微米
1.9 微米 + 升/150 微米
3D 格式
2.4 微米 + 升/150 微米
2.4 微米 + 升/150 微米
软件
蔡司CALYPSO
蔡司CALYPSO
|
| O-检测 3/2/2 | O-检测 5/4/3 |
照相机 |
| 蔡司 INVENTA D1 | 蔡司 INVENTA D1 |
测量体积 |
| 300 x 200 x 200 毫米3 | 500 x 400 x 300 毫米3 |
视场 |
| 8.4 x 7.0 毫米2 | 8.4 x 7.0 毫米2 |
长度测量误差 MPE （EU） | 2D 格式 | 1.9 微米 + 升/150 微米 | 1.9 微米 + 升/150 微米 |
3D 格式 | 2.4 微米 + 升/150 微米 | 2.4 微米 + 升/150 微米 | |
软件 |
| 蔡司CALYPSO | 蔡司CALYPSO |
产品功能
特征
![]({"small":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section/sectionpar/column_control_540489727/column/columnpar/visibilitycontainer_/wrapperpar/clickmap_4e86/image.pic.s.1671177829084.png/o-detect.png","large":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section/sectionpar/column_control_540489727/column/columnpar/visibilitycontainer_/wrapperpar/clickmap_4e86/image.pic.l.1671177829084.png/o-detect.png","medium":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section/sectionpar/column_control_540489727/column/columnpar/visibilitycontainer_/wrapperpar/clickmap_4e86/image.pic.m.1671177829084.png/o-detect.png","full":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section/sectionpar/column_control_540489727/column/columnpar/visibilitycontainer_/wrapperpar/clickmap_4e86/image.pic.f.1671177829084.png/o-detect.png"})

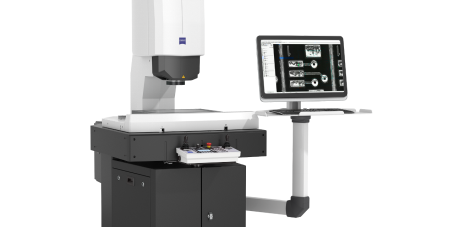

入门级高端相机
蔡司O-DETECT的一个关键要素是其高质量的相机。得益于先进的软件和新的自动对焦功能，相机拍摄的图像可以转换为精确的测量结果。
快速、精确、直观 – 得益于全景摄像头
蔡司O-DETECT的另一个重要组件是同类产品中的首款：集成了5万像素相机传感器的全景相机。概览相机可捕获整个测量区域，包括放置在测量台上的所有工件。采集的概览图像用于将测量相机导航至适当位置，而无需使用控制面板。这样可以实现直观和快速的编程。

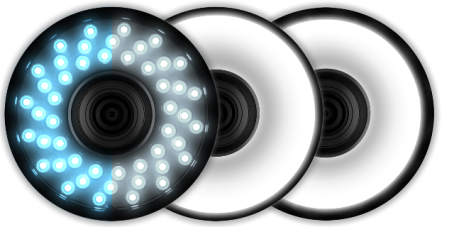

可更换顶灯
高质量的照明在获得精确的测量结果方面起着关键作用。多功能且易于更换的蔡司O-DETECT顶灯为此提供了最佳条件。顶灯根据用户定义的设置自动运行。
轻松交换

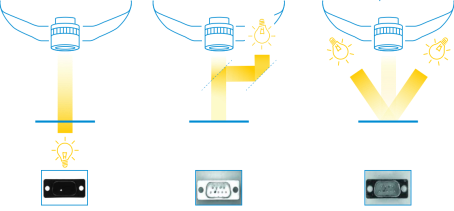

适用于每项任务的照明选项
蔡司O-DETECT为某些测量件可能面临的各种挑战提供了不同的照明选项。用于一般零件顶部照明的环形灯和用于照亮闪亮工件的选项，或用于具有挑战性的边缘的优化照明。
![]({"small":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_ab13/column0/columnpar/visibilitycontainer/wrapperpar/image_4594/image.pic.s.1671177831393.png/zeiss-odetect-light-options.png","large":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_ab13/column0/columnpar/visibilitycontainer/wrapperpar/image_4594/image.pic.l.1671177831393.png/zeiss-odetect-light-options.png","medium":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_ab13/column0/columnpar/visibilitycontainer/wrapperpar/image_4594/image.pic.m.1671177831393.png/zeiss-odetect-light-options.png","full":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_ab13/column0/columnpar/visibilitycontainer/wrapperpar/image_4594/image.pic.f.1671177831393.png/zeiss-odetect-light-options.png"})
![]({"small":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_4374/column/columnpar/visibilitycontainer/wrapperpar/image_3e8f/image.pic.s.1671177831829.png/zeiss-odetect-light-differences.png","large":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_4374/column/columnpar/visibilitycontainer/wrapperpar/image_3e8f/image.pic.l.1671177831829.png/zeiss-odetect-light-differences.png","medium":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_4374/column/columnpar/visibilitycontainer/wrapperpar/image_3e8f/image.pic.m.1671177831829.png/zeiss-odetect-light-differences.png","full":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_754089917/sectionpar/column_control_4374/column/columnpar/visibilitycontainer/wrapperpar/image_3e8f/image.pic.f.1671177831829.png/zeiss-odetect-light-differences.png"})
![]({"small":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_1830213044/sectionpar/column_control/column/columnpar/visibilitycontainer/wrapperpar/image_9843/image.pic.s.1671177880382.jpg/zeiss_xdt-sensor_v1.jpg","large":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_1830213044/sectionpar/column_control/column/columnpar/visibilitycontainer/wrapperpar/image_9843/image.pic.l.1671177880382.jpg/zeiss_xdt-sensor_v1.jpg","medium":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_1830213044/sectionpar/column_control/column/columnpar/visibilitycontainer/wrapperpar/image_9843/image.pic.m.1671177880382.jpg/zeiss_xdt-sensor_v1.jpg","full":"/gongyeceliang/chanpin/xitong/duotantousanzuobiaoceliangji/o-detect/j/m/section_1830213044/sectionpar/column_control/column/columnpar/visibilitycontainer/wrapperpar/image_9843/image.pic.f.1671177880382.jpg/zeiss_xdt-sensor_v1.jpg"})

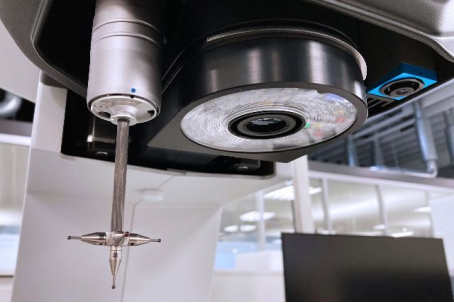

快速、精确的触觉 3D 测量
使用选件蔡司XDT，可以在蔡司O-DETECT中添加接触式单点传感器。使用触觉传感器可以轻松到达光学相机传感器无法检测到的侧孔或咬边。根据测量任务的不同，可以在具有CNC功能的测量程序中安装和更换单独的测针配置。作为无源测量传感器，蔡司XDT提供可重复的测量结果，因为对于每个单独的探测点，都会确定大量的测量点并计算出稳定的平均值。

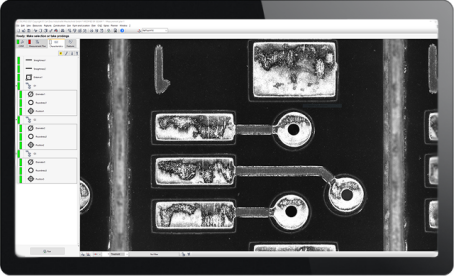

易于使用和编程：蔡司CALYPSO软件
通用测量软件蔡司CALYPSO为不同的测量任务提供了高度的灵活性，无论要求是简单还是高级。蔡司CALYPSO express具有清晰的用户界面和结构化的工作流程，可实现简单的编程和易学性。蔡司PiWeb报告让您只需点击几下鼠标即可创建专业报告。
